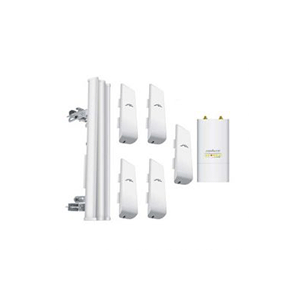

AM-5G16 – Ubiquiti Antenna AM-5G16 5Ghz 16dBi 120-deg Dual-Pol Sector

Get the AM-5G16 – Ubiquiti Antenna AM-5G16 5Ghz 16dBi 120-deg Dual-Pol Sector at the best price in Uganda from Wodex.NET

AM-5G16 – Ubiquiti Antenna AM-5G16 5Ghz 16dBi 120-deg Dual-Pol Sector antenna operating on 5GHz spectrum with a 16dBi gain. It works well with the Rocket M5 radio.

airMAX 5G16 Specifications:
• Frequency Range: 5.10-5.90 GHz
• Gain: 15.0-16.0dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 22dB min
• Max VSWR: 1.5:1
• Hpol Beamwidth (6dB): 137 deg.
• Vpol Beamwidth (6dB): 118 deg.
• Elevation Beamwidth: 8 deg.
• Electrical Downtilt: 4 deg.
• ETSI Specification: EN 302 326 DN2
• Dimensions: 14.5×2.5×1.6in (367x63x41mm) diameter
• Weight: 2.4lbs (1.1kg)
• Wind Loading: 120 mph

Product Includes:
• Sector antenna
• Antenna bracket with the Rocket fast mount (for the airMAX base station model only)
• Pole brackets, bolts, washers and nuts
• RF jumper cables (weatherproof)
