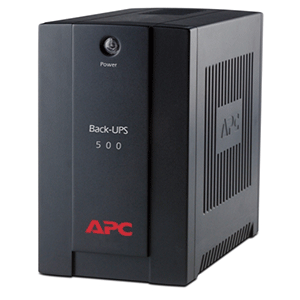

APC Back-UPS BX500CI

In stock

Output power capacity

300Watts / 500VA

Output Connections

(1) IEC Jumpers (Battery Backup)
(3) IEC 320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC-320 C14

Cord Length

1.83meters

Maximum Input Current

2.0A
Compare
Categories: ,

Get the APC Back-UPS BX500CI at the best price in Uganda from Wodex.NET

  • Adjustable voltage sensitivity
    Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points
    Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Audible alarms
    Provides notification of changing utility power and UPS power conditions
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Boost Automatic Voltage Regulation (AVR)
    Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
  • LED status indicators
    Quickly understand unit and power status with visual indicators.
  • Resettable circuit breaker
    Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
  • Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Back-UPS Features & Benefits

Protection

Surge only outlets

Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges and spikes.

Marketing Features

Battery-protected and surge-only outlets

Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability

Audible alarms

Provides notification of changing utility power and UPS power conditions

LED status display

Quickly understand unit and power status with visual indicators.

Availability

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Technical Specs

Output

Max Configurable Power (Watts)

300Watts / 500VA

Output Frequency (sync to mains)

50 Hz

Output Frequency (not synced)

50Hz +/- 0.1% for 50Hz nominal

Topology

Line Interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6ms typical : 10ms maximum

Input

Input frequency

45 – 65 Hz

Input voltage range for main operations

160 – 280V

Number of Power Cords

1

Batteries & Runtime

Battery Volt-Amp-Hour Capacity

47

Communications & Management

Control panel

LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

273Joules

Physical

Maximum Height

185MM, 18.5CM

Maximum Width

115MM, 11.5CM

Maximum Depth

213MM, 21.3CM

Net Weight

5.2KG

Shipping weight

5.68KG

Shipping Height

257MM, 25.7CM

Shipping Width

190MM, 19.0CM

Shipping Depth

291MM, 29.1CM

Color

Black

Master Carton Units

2.0

Units per Pallet

60.0

SCC Codes

6073130430736 7

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0-3000meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

45.0dBA
