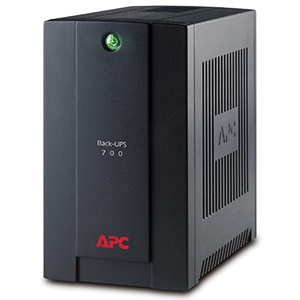

APC Back-UPS BX700UI - Image 1
Click to enlarge

APC Back-UPS BX700UI

Compare
Categories: ,

Get the APC Back-UPS BX700UI at the best price in Uganda from Wodex

Back-UPS Features & Benefits

Marketing Features

APC Back-UPS BX700UI Battery-protected and surge-only outlets

Reserves power capacity and run time for connected equipment that requires UPS battery backup while providing surge-only protection for less critical equipment

Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability

LED status display

Quickly understand unit and power status with visual indicators.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Protection

Surge only outlets

Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery and surge-protected outlets

Back up and protect your hardware and data during power outages, surges, and spikes.

Availability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Technical Specs

Output

Max Configurable Power (Watts)

390Watts / 700VA

Output Frequency (sync to mains)

50/60 Hz +/-1 Hz

Topology

Line Interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

4ms typical

Input

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations

140 – 300V

Number of Power Cords

1

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time

6hour(s)

Replacement Battery

BE650G2-UK

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Volt-Amp-Hour Capacity

84

Runtime

View Runtime Graph
View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

USB

Control panel

LED status display with On Line: On Battery: Replace Battery and Overload indicators

Audible Alarm

Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

273Joules

Data Line Protection

RJ-11 Modem/Fax/DSL protection (two-wire single line)

Physical

Maximum Height

200MM, 20.0CM

Maximum Width

115MM, 11.5CM

Maximum Depth

256MM, 25.6CM

Net Weight

6.0KG

Shipping weight

6.5KG

Shipping Height

275MM, 27.5CM

Shipping Width

295MM, 29.5CM

Shipping Depth

340MM, 34.0CM

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (non-condensing) %

Operating Elevation

0-3000meters

Storage Temperature

-15 – 40 °C

Storage Relative Humidity

0 – 95 (non-condensing) %

Storage Elevation

0-9000meters

Audible noise at 1 meter from the surface of the unit

45.0dBA
