Aruba 2530-8 Switch

In stock

J9773A Overview

Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. Designed for entry level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+. The 2530 24G PoE+ model has 24 x 10/100/1000 PoE enabled ports and four Gigabit SFP ports.

Compare
Categories: ,

Get the Aruba 2530-8 Switch at the best price in Uganda from Wodex.NET

Model: HPE J9773A – Aruba 2530 Switch
Detail: Aruba 2530 24G PoE+ Switch

Quick Spec



Product Code J9773A
Type Aruba 2530-24G-PoE+ Switch
Ports
  • · 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
  • · 4 fixed Gigabit Ethernet SFP ports
  • · 1 dual-personality (RJ-45 or USB micro-B) serial console port.
PoE power 195 W
Throughput up to 41.6 million pps (64-byte packets)
Switching capacity 56 Gb/s
Dimensions (W x D x H) 44.3 x 33.02 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height)
Weight 3.95 kg (8.7 lb)

Product Details

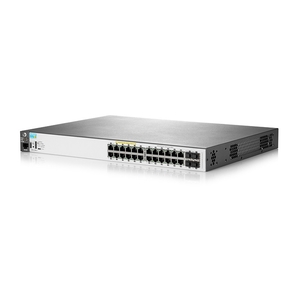

Figure 1 shows the appearance of Aruba J9773A.

HPE-Aruba-J9773A-Appearance

Figure 2 shows the back panel of Aruba J9773A.

HPE-Aruba-J9773A-Back-Panel

Note:

AC Power Connector

Compare to Similar Items

Table 2 shows the comparison.

Product Code J9783A J9776A J9775A J9773A J9772A
Type Aruba 2530-8 Switch Aruba 2530-24G Switch Aruba 2530-48G Switch Aruba 2530-24G-PoE+ Switch Aruba 2530-48G-PoE+ Switch
PoE power N/A N/A N/A 195 W 382 W
Throughput up to 4.1 million pps (64-byte packets) Up to 41.6 million pps (64-byte packets) Up to 77.3 Mp/s (64-byte packets) up to 41.6 million pps (64-byte packets) Up to 77.3 million pps (64-byte packets)
Switching capacity 5.6 Gb/s 56 Gb/s 104 Gb/s 56 Gb/s 104 Gb/s

Get more information

Do you have any question about the J9773A?

Contact us now via Live Chat or sales@router-switch.com.

J9773A Specification

J9773A Specifications

Type Aruba 2530-24G-PoE+ Switch
System specifications
Ports
  • · 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
  • · 4 fixed Gigabit Ethernet SFP ports
  • · 1 dual-personality (RJ-45 or USB micro-B) serial console port.
Memory and processor Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated.
Mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting.
Management IMC – Intelligent Management Center; Command-Line Interface (CLI); Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB);IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB.
Performance (IPv6 Ready Certified)
1000 Mb latency < 2.3 µs (LIFO 64-byte packets)
100 Mb Latency < 7.4 µs (LIFO 64-byte packets)
Throughput up to 41.6 million pps (64-byte packets)
Switching capacity 56 Gb/s
MAC address table size 16000 entries
Physical specifications
Dimensions (W x D x H) 44.3 x 33.02 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height)
Weight 3.95 kg (8.7 lb)
Electrical specifications
Maximum heat dissipation 135 BTU/hr (142.42 kJ/hr), (switch only: 135 BTU/hr; combined switch + max. PoE devices: 843 BTU/hr)
Voltage 100 – 127 / 200 – 240 V ac
Current 3.2/1.6 A
Idle power1 25.2 W
Maximum power rating2 247 W
PoE power 195 W
Frequency 50/60 Hz
NOTE: 1: Idle power is the actual power consumption of the device with no ports connected.

2: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the total power budget available to all PoE ports.

Environmental specifications
Operating temperature 0° to 45°C (32° to 113°F)
Operating relative humidity 15% to 95% @ 40°C (104°F), noncondensing
Non-operating/storage temperature -40° to 70°C (-40° to 158°F)
Non-operating/storage relative humidity 15% to 90% @ 65°C (149°F), noncondensing
Altitude Up to 3 km (10,000 ft)
Acoustic Power: 39.6 dB, Pressure: 43.9 dB
Safety agency certifications
Safety UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
NOTE: IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision “B” or later (product number ends with the letter “B” or later, e.g., J4858B, J4859C) are required.
