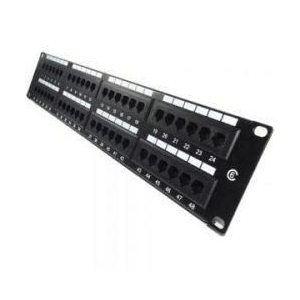

Giganet GN-C6-PP-48 Category 6 UTP 19” 48 Port Patch Panel

In stock

Compare
Categories: ,

Get the Giganet GN-C6-PP-48 Category 6 UTP 19” 48 Port Patch Panel at the best price in Uganda from Wodex.NET

The Giganet Cabling solution products have been designed and manufactured to top International standards for end-to-end category 6 UTP installations in both horizontal and backbone areas. The Giganet Category 6 UTP high density patch panels are manufactured and tested to exceed Category 6 ANSI/TIA/EIA 586-B.2-1 component specifications for both link and channel performance requirements. This provides higher bandwidth to transmit data in excess of 250MHz to support present and emerging applications. Giganet GN-C6-PP-48 Category 6 UTP 19” 48 Port Patch Panel is designed to fit industry standard 19″ cabinets. These fully compliant panels are simple to install and provide excellent performance at a great price. *Numerical identification on all outlets *Labeling fields with writeable surface *Six port blocks for ease of management * Rear Wire manager guide included *IDC punch down termination *Cage nuts included *Color: Matt Black.

When used with the Giganet Cable, the Giganet Work Area outlets and the Giganet Patch cords, the user will get a performance exceeding Category 6 requirements.

FEATURES

  • Category 6 Compliant & Pyramid tested
  • Universal T568A and T568B wiring configurations
  • Available in 24 / 48 ports density
  • Rear Cable Manager bar included
  • LSA + Compatible connecting blocks
  • Protected PCB

MATERIALS

  • Spring Contact: Phosphor bronze 50m” gold over 100m” nickel
  • IDC: PC UL 94V-0, Accept 22-26 AWG Solid Cable
  • Unit: 1U (24 ports), 2U (48 ports) for 19″ Rack Mount
  • Metal Case: 1.6m/m thickness mild steel frame metallic chassis



ELECTRICAL SPECIFICATIONS

  • According to UL 1863
  • Current Rating: 1.5A (max)
  • Voltage Rating: 150 Volts
  • Insulation Resistance: 500MW (min)
  • Contact Resistance: 20MW (max)
  • Plug Insertion: 750 cycles (min)

STANDARDS

  • ANSI/TIA/EIA-568-B.2-1 Category 6 component compliant
  • ISO/IEC Generic Cabling Standard 11801
  • CENELEC Generic Cabling Standard EN50173-1
