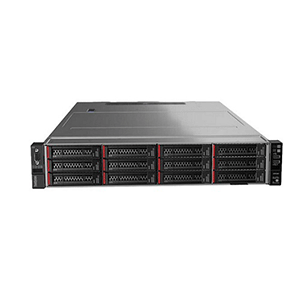

Lenovo ThinkSystem SR590
Get the Lenovo ThinkSystem SR590 at the best price in Uganda from Wodex.NET
Designed for rack environments that require peak two-socket performance and sizeable memory capacity, the Lenovo ThinkSystem SR590 can tackle cloud and Big Data environments for medium and large enterprises. The SR590 is a balanced, midrange rack server that also works well for small-scale virtualization, collaboration, and productivity applications, as well as caching and logging.
Two Intel Xeon Scalable Family processors increase agility and manage data-rich, high-demand workloads with up to a 1.5x memory bandwidth increase over the previous generation. Combined with up to 1TB of memory capacity, this enables applications to run faster and more efficiently and boosts business performance at a lower cost and higher overall value.
Power-on and admin password
Trusted Platform Module, TCG 1.2 compliant, upgrade to 2.0 via UEFI setting Optional TCM in China only
Optional lockable security bezelSystems management:
XClarity Controller Standard Enterprise
Lenovo Capacity Planner
Light Path Diagnostics
Server, power supply, documentation
ENERGY STAR Qualified: Yes
Chassis Form Factor: 2U RackmountColor: Black
Up to two 150W Intel Xeon Scalable family processors, Bronze, Silver, Gold, or Platinum. Up to 26 cores at 2.0GHz, up to 3.6GHz with 4 cores. Two processors are connected with two UPI (Ultra Path Interconnect) links up to 10.4GT/s each.
Cache Memory (installed): 13 MBRAM (installed): 64 GBRAM (max): 1000 GBRAM Technology: DDR4 SDRAM
64GB (2x32GB) *2666MHz RDIMM DDR4 SDRAM, upgradeable to 1TB.
There are sixteen DIMM slots. Two slots are occupied by removable 32GB modules; the other slots are open.
*Memory will operate at 2400MHz due to processor limitations.
Each processor supports up to eight DIMM slots with six channels
DDR4 SDRAM, up to 2666MHz
RDIMMs and LRDIMMs are supported but memory types cannot be intermixed
RDIMMs: 512GB (16x32GB), up to two processors
LRDIMMs: 1TB (16x64GB), up to two processors
Video memory: integrated Matrox G200 graphics in XClarity controller
There is no operating system pre-installed.
Supported operating systems include:
Microsoft Windows Server 2016/2012 R2
Red Hat Enterprise Linux 7.3/6.9
SUSE Linux Enterprise Server 12 SP2/11 SP4
VMware ESXi 6.5/6.0 U3
OS Provided: No Operating System Installed
CD/DVD Type: No Optical Drive
3.4″h x 19.0″w x 30.1″d
Slot 1-3 (riser card 1) Supports one of the following for riser card 1:
*Option 1: PCIe 3.0 x8/x8/x8 (slot 1-3), FH/HL
Option 2: PCIe 3.0 x16/x8 (slot 1 and 3), FH/HL
Option 3: PCIe 3.0 x8/x8/x8 ML2 (slot 1-3), FH/HL
Option 4: (2) rear 3.5″ disk bays, (12) 3.5″ models only
Slot 4 (onboard) PCIe 3.0 x8, LP
*Slot 5 (riser card 2) PCIe 3.0 x16, FH/HL; requires 2nd CPU
Slot 6 (riser card 2) PCIe 3.0 x8, FH/HL
*Denotates option selected for this modelExpansion bays:
(16) 2.5″ HS bays (12x SATA/SAS, 4xAnyBay)
NOTE: Supports (8) 3.5″ Simple-swap bays, or;
(12) 3.5″ HS bays, or;
(12) 2.5″ HS bays, or;
(16) 2.5″ HS bays
On (12) 3.5″, (8) 2.5″, or (16) 2.5″ bay models, (4) bays can be upgraded to
Optional (2) rear 3.5″ HS bays are supported on (12) 3.5″ model, takes place in riser card 1 location.
Optional (1) or (2) internal M.2 SSD for boot; dual M.2 SSD supports mirroring
(1) Front VGA
(1) XClarity Controller USB
(1) USB 3.0
(2) USB 3.0
(2) RJ-45 LAN
(1) XClarity Controller connector
(2) Power in
430-16i adapter, 12Gbps SAS interface, SATA/SAS drive type, supports JBOD.
# Power Supplies Installed: 2# Power Supplies Supported: 2Power Provided: 1500.00 watt(s)
(2) 750W hot-swap platinum power supplies
Power supply notes:
Up to (2) redundant hot-swap 550W and 750W 80 PLUS Platinum qualified AC
power supplies, or;
Up to (2) redundant hot-swap 750W Titanium qualified AC power supplies
750W Titanium is 200V – 240V; others are 100V – 240V
(3) fans (2+1) for single processor model, or;
(4) fans (3+1) for dual processor model
# Processors Installed: 2# Processors Supported: 2Chipset Type: Intel C622 Platform Controller HubData Bus Speed: 2400 MHzNumber of Cores: 10-coreProcessor Features: Intel Turbo Boost TechnologyProcessor Manufacturer: IntelProcessor Model Number: 4114Processor Speed: 2.2 GHzProcessor Speed (Boosted): 3.00 GHzProcessor Type: Xeon Silver
Networking Protocol: Gigabit Ethernet
Compliant Standards: ENERGY STAR Server 2.1
Hard Drive Interface: SAS, SATAHard Drive Type: Hot-swapStorage Controller RAID Level: JBODStorage Controller Type: SAS 12.0 Gbps, SATA
Video Card: Integrated, Matrox G200Video RAM (installed): 16 MBVideo Slot Type: PCI Express 3.0 x16
Limited onsite service with 9×5 next business day support.
