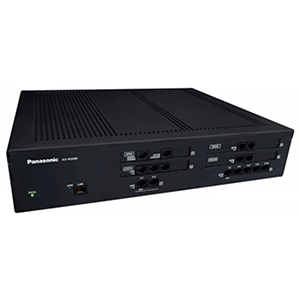

Get the Panasonic KX-NS500 Smart Hybrid PBX at the best price in Uganda from Wodex.NET
- Smart hybrid PBX system for small and medium-sized businesses
- Expand from 6 analogue trunks and 18 extensions, up to 190 channels and 288 extensions by adding Expansion Units
- Cost-effective installation and operation
- Built-in applications include call centre solution, mobile solution and voice mail
- Easy evolution from analogue to IP communications
The KX-NS500 supports the following number of trunks.
| Type | KX-NS500 | |||
| Basic System |
With 1 KX-NS520 |
With 2 KX-NS520 |
With 3 KX-NS520 |
|
| TOTAL NUMBER OF TRUNKS |
100 | 130 | 160 | 190 |
|---|---|---|---|---|
| LEGACY | 36 | 66 | 96 | 126 |
| BRI | – | – | – | – |
| PRI23 | – | – | – | – |
| PRI30 | 30 | 60 | 90 | 120 |
| T1 | – | – | – | – |
| E1 | 30 | 60 | 90 | 120 |
| ANALOGUE | 12 | 24 | 36 | 48 |
| IP | 64 | 64 | 64 | 64 |
| H.323 | 32 | 32 | 32 | 32 |
| SIP | 64 | 64 | 64 | 64 |
Maximum Terminal Equipment
The following shows the number of each terminal equipment type supported by the KX-NS500.
| Type | KX-NS500 | |||
| Basic System |
With 1 KX-NS520 |
With 2 KX-NS520 |
With 3 KX-NS520 |
|
| EXTENSIONS (DXDP*1) | 162 (168) | 194 (208) | 226 (248) | 258 (288) |
|---|---|---|---|---|
| LEGACY (DXDP*1) | 34 (40) | 66 (80) | 98 (120) | 130 (160) |
| SLT | 32 | 64 | 96 | 128 |
| DPT | 18 (24) | 34 (48) | 50 (72) | 66 (96) |
| APT | 8 | 16 | 24 | 32 |
| IP | 128 | 128 | 128 | 128 |
| IP-PT | 128 | 128 | 128 | 128 |
| SIP | 128 | 128 | 128 | 128 |
| SIP PHONE | 128 | 128 | 128 | 128 |
| S-PS | 128 | 128 | 128 | 128 |
| DSS CONSOLE | 8 | 8 | 8 | 8 |
| CS | 20 | 24 | 28 | 32 |
| DPT-CS (2 CH) | 4 | 8 | 12 | 16 |
| DPT-CS (8 CH) | 2 | 4 | 6 | 8 |
| IP-CS | 16 | 16 | 16 | 16 |
| SIP-CS | 16 | 16 | 16 | 16 |
| PS | 128 | 128 | 128 | 128 |
| VM | ||||
| BUILT-IN UM (CH) | 24 | 24 | 24 | 24 |
| TVM UNIT | 2 | 2 | 2 | 2 |
| DOORPHONE | 2 | 4 | 6 | 8 |
| DOOR OPENER | 2 | 4 | 6 | 8 |
| EXTERNAL SENSOR | 2 | 4 | 6 | 8 |
*1 When Digital XDP is used.
For any small or medium-sized business looking to take advantage of Panasonic’s reputation for quality technology, without needing a huge budget, the new KX-NS500 unified communication solution provides the answers. This smart hybrid PBX is a cost-effective legacy and IP communication system for companies with up to 250 employees; that can be flexibly configured and expanded according to the specific requirements of their business.
Expand up to 288 extensions
The KX-NS500 has advanced features and starts from 6 analogue trunks and 18 extensions, up to 190 channels and 288 extensions by adding Expansion Units. The KX-NS500 is also a unified communication system which has rich IP features, such as mobile linking, integrated voice mail and e-mail, instant messaging (chat), and presence information.
It can also use built-in applications such as a call centre solution, mobile solution and voice mail system to provide more efficient work and increased customer satisfaction.
Panasonic NS500 Hybrid IP PBX
For any business, small or medium, oriented to take advantage of the reputation of Panasonic technologies for high quality, without investing significant budget, the new unified communications solution for KX-NS500 is the right answer. This is a smart PBX and IP communications system and legacy affordable for businesses with up to 250 employees that offers flexible configuration options and is scalable according to the specific requirements of their business.You can also use built-in applications, such as a solution for call centers, a mobile solution and a voice mail system to ensure greater operational efficiency and increased customer satisfaction.
Hybrid PABX System | Panasonic KX-NS500 Smart Hybrid System
The Panasonic KX-NS500 Smart Hybrid PBX is a cost effective legacy and IP communication system for small and medium sized companies that can be flexibly configured and expanded according to your needs.
