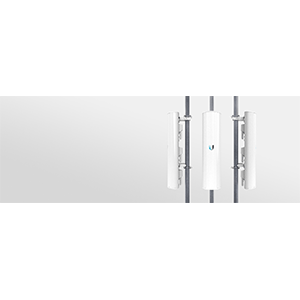

Ubiquiti airPrism AP-5AC-90-HD 5 GHz, 3×30 HD Sector Antenna
Get the Ubiquiti airPrism AP-5AC-90-HD 5 GHz, 3×30 HD Sector Antenna at the best price in Uganda from Wodex.NET
With the ability to install three Rocket5ac Prism radios, the Ubiquiti airPrism AP-5AC-90-HD 5 GHz, 3×30 HD Sector Antenna provides three separate 30° beamwidth signal transmissions. The configuration of the radios makes this HD sector antenna a perfect solution for point-to-multipoint setups and with enhanced noise isolation and beam performance users benefit from a stronger signal with enhanced data rates. This antenna also operates on the less congested 5 GHz frequency offering a more reliable connection with reduced interference.
FREQUENCY RANGE 5.15 – 5.85 GHZ GAIN 22 DBI HPOL BEAMWIDTH 3 X 30° (6 DB) VPOL BEAMWIDTH 3 X 30° (6 DB) ELECTRICAL BEAMWIDTH 8° ELECTRICAL DOWNTILT 2° MAXIMUM VSWR 1.75:1 POLARIZATION DUAL-LINEAR CROSS-POLARIZATION ISOLATION 30 DB MINIMUM INTERFACES 6 X RP-SMA CONNECTORS (WEATHERPROOF) COMPATIBLE RADIOS ROCKET5AC PRISM, MODEL R5AC-PRISM WIND LOADING 120 LBF @ 125 MPH / 534 N @ 200 KM/H WIND SURVIVABILITY 125 MPH / 200 KM/H MOUNTING UNIVERSAL POLE MOUNT, ROCKET BRACKET, AND WEATHERPROOF RF CONNECTORS INCLUDED ETSI SPECIFICATION EN 302 326 DN2 CERTIFICATIONS CE, FCC, IC DIMENSIONS 12.70 X 7.93 X 51.18″ / 322.6 X 201.5 X 1300.0 MM WEIGHT 28.9 LB / 13.1 KG PACKAGING INFO PACKAGE WEIGHT 36.2 LB BOX DIMENSIONS (LXWXH) 60.0 X 16.0 X 11.0″
