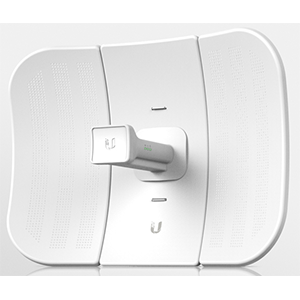

Ubiquiti LiteBeam AC | 5GHz, 23dBi, airMAX CPE

In stock

Compare

Get the Ubiquiti LiteBeam AC | 5GHz, 23dBi, airMAX CPE at the best price in Uganda from Wodex.NET

take advantage of longer range, higher performance, and 3 axis adjustment flexibility. Operating on the license free 5 GHz frequency you can take advantage of data transfer rates of up to 100+ Mbps at distances of up to 18+ mi (30+ km). Additionally, this antenna features airMAX ac technology and 2×2 MIMO (multiple-input multiple-output) functionality supporting multiple data streams for faster more reliable connections. Combine the improved distance with Ubiquiti Networks own airMAX technology and you benefit from increased airtime efficiency through the use of Time Division Multiple Access or TDMA technology. Additionally, airMAX technology offers intelligent QoS and improved scalability.

INTEGRATED AIRMAX TECHNOLOGY
UNLIKE STANDARD WI-FI PROTOCOL, THE UBIQUITI NETWORKS AIRMAX TIME DIVISION MULTIPLE ACCESS (TDMA) PROTOCOL ALLOWS EACH CLIENT TO SEND AND RECEIVE DATA USING PRE-DESIGNATED TIME SLOTS MANAGED BY AN INTELLIGENT AP CONTROLLER. THIS “TIME SLOT” METHOD ELIMINATES HIDDEN NODE COLLISIONS AND MAXIMIZES AIRTIME EFFICIENCY.
INTELLIGENT QOS
PRIORITY IS GIVEN TO VOICE/VIDEO FOR SEAMLESS ACCESS.
SCALABILITY
HIGH CAPACITY AND SCALABILITY.
LONG DISTANCE
CAPABLE OF HIGH-SPEED, 18+ MI (30+ KM) LINKS.
QUICK, SNAP-AND-LOCK ASSEMBLY
THE MECHANICAL DESIGN MAKES ASSEMBLING AND DISASSEMBLING THE LBE-5AC-23 – LITERALLY – A SNAP. NO TOOLS ARE REQUIRED.
Mounting Kit Pole mounting kit (included)
Max Power Consumption 7 W
Power Supply 24 V, 0.3 A Gigabit PoE adapter (included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 return)
Temperature & Humidity Operating Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 5 to 95% non-condensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection ± 24 KV contact / air
Processor MIPS 74K
Memory 64 MB
Networking Interface 1 x Gigabit Ethernet port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Output Power Output Power: 25 dBm
TX Power Specifications
Data Rate / Avg. TX / Tolerance
airMAXac
1x BPSK (½) 25 dBm ± 2 dB
2x QPSK (½) 25 dBm ± 2 dB
2x QPSK (¾) 25 dBm ± 2 dB
4x 16QAM (½) 25 dBm ± 2 dB
4x 16QAM (¾) 25 dBm ± 2 dB
6x 64QAM (2/3) 25 dBm ± 2 dB
6x 64QAM (¾) 24 dBm ± 2 dB
6x 64QAM (5/6) 23 dBm ± 2 dB
8x 256QAM (¾) 21 dBm ± 2 dB
8x 256QAM (5/6) 21 dBm ± 2 dBRX Power Specifications
Data Rate / Sensitivity / Tolerance
airMAXac
1x BPSK (½) -96 dBm ± 2 dB
2x QPSK (½) -95 dBm ± 2 dB
2x QPSK (¾) -92 dBm ± 2 dB
4x 16QAM (½) -90 dBm ± 2 dB
4x 16QAM (¾) -86 dBm ± 2 dB
6x 64QAM (2/3) -83 dBm ± 2 dB
6x 64QAM (¾) -77 dBm ± 2 dB
6x 64QAM (5/6) -74 dBm ± 2 dB
8x 256QAM (¾) -69 dBm ± 2 dB
8x 256QAM (5/6) -65 dBm ± 2 dB
Operating Frequency Worldwide: 5150 – 5875 MHz
USA: 5725 – 5850 MHz
Gain 23 dBi
Max VSWR 1.5:1
Dimensions 14.25 x 10.75 x 7.99″ / 362 x 273 x 203 mm
Weight 2.00 lb / 907 g
