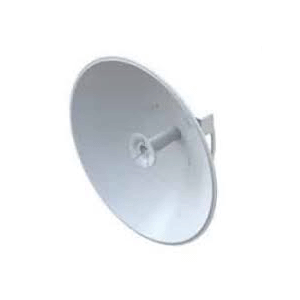

AF-2G24-S45 – Ubiquiti airFiber Antenna 2.4GHz 24dBi 45deg Slant Parabolic Dish

In stock

Compare

Get the AF-2G24-S45 – Ubiquiti airFiber Antenna 2.4GHz 24dBi 45deg Slant Parabolic Dish at the best price in Uganda from Wodex.NET

The AF-2G24-S45 – Ubiquiti airFiber Antenna 2.4GHz 24dBi 45deg Slant Parabolic Dish has a frequency of 2.4GHz, 24dBi gain and a slant of 45° in a 650mm diameter size. This antenna pairs with the AF-2X radio to create the endpoint of a high performance, Point-to-point bridge or network backhaul. The airFiber X antenna delivers 2×2, dual polarity performance. Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

Product Specifications:
• Frequency Range: 2.3 – 2.7GHz
• Dimensions: ∅650 x 295mm (∅25.59 x 11.61″)
• Weight: 9.8kg (21.61lbs)
• Gain: 24dBi
• F/B Ratio: 28dB
• Max VSWR: 1:6:1
• Wind Loading: 177lbf @ 125mph (787N @ 200km/h)
• Wind Survivability: 125mph (200km/h)
• Polarization: Dual-Linear
• Cross-pol Isolation: 35dB minimum
• ETSI Spec.: EN 302 326 DN2
• Mounting: Universal pole mount

Product Includes:
• (1) Dish Reflector
• (1) Antenna Feed
• (1) Mounting Bracket
• (2) Pole Clamps
• (1) Protective Shroud
• (2) Stabilizer Brackets
• (1) Elevation Rod
• (4) M10x150 Carriage Bolts
• (2) M10x100 Bolts
• (3) M10x25 Carriage Bolts
• (4) M4 Bolts
