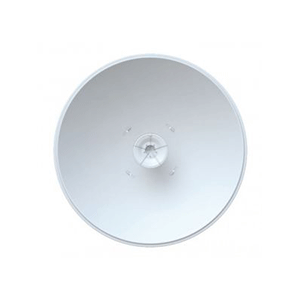

AF-5G30-S45 – Ubiquiti airFiber Antenna 5GHz 30dBi 45deg Slant Parabolic Dish

In stock

Compare

Get the AF-5G30-S45 – Ubiquiti airFiber Antenna 5GHz 30dBi 45deg Slant Parabolic Dish at the best price in Uganda from Wodex.NET

The AF-5G30-S45 – Ubiquiti airFiber Antenna 5GHz 30dBi 45deg Slant Parabolic Dish has a frequency of 5GHz, 30dBi gain and a slant of 45degrees in a 650mm diameter size. The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

The AF-5G30-S45 offers 30 dBi of gain in a 650-mm diameter size.

  • An airFiber dish that has a frequency of 5GHz, 30dBi gain and a slant of 45degrees in a 650mm diameter size
PRODUCT CONDITION New
MANUFACTURER PART NUMBER AF-5G30-S45
MANUFACTURER Ubiquiti Networks
SPECIFICATIONS

Antenna Characteristics

Model AF-5G23-S45 AF-5G30-S45 AF-5G34-S45
Dimensions* 378 x 378 x 290 mm
(14.88 x 14.88 x 11.42″)
650 x 650 x 386 mm
(25.6 x 25.6 x 15.2″)
1050 x 1050 x 421 mm
(41.34 x 41.34 x 16.57″)
Weight** 3.4 kg (7.5 lb.) 7.4 kg (16.31 lb.) 13.5 kg (29.76 lb.)
Frequency Range 5.1 – 5.9 GHz 5.1 – 5.9 GHz 5.1 – 5.8 GHz
Gain 23 dBi 30 dBi 34 dBi
+ 45° Beamwidth 10° (3 dB) 5.8° (3 dB) 3° (3 dB)
– 45° Beamwidth 10° (3 dB) 5.8° (3 dB) 3° (3 dB)
F/B Ratio 30 dB 30 dB 42 dB
Max. VSWR 1.5:1 1.6:1 1.4:1
Wind Loading 190 N @ 200 km/h
(43 lbf @ 125 mph)
790 N @ 200 km/h
(178 lbf @ 125 mph)
1,779 N @ 200 km/h
(400 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization Dual-Linear
Cross-pol Isolation 35 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included

* Dimensions exclude pole mount and airFiber X radio (airFiber X radio sold separately)
** Weight includes pole mount and excludes airFiber X radio (airFiber X radio sold separately)

KEY FEATURES Innovative Mechanical Design

  • Secure Pole-Mounting The hardware is designed to securely mount and maintain the position of the dish during harsh outdoor conditions.
  • Convenient Installation The bubble level allows for easy alignment.
  • Precision Elevation Adjustment of the AF-5G30-S45 Use this new feature to quickly fine-tune and adjust the elevation.

Weatherproof Design

  • Protective Shroud The shroud protects the cables and connectors from nature’s elements.
  • Mounting Hardware of the AF-5G30-S45 Made of galvanized steel that is powder-coated for superior corrosion resistance.
  • Fasteners of the AF-5G30-S45 GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.

The AF-5G30-S45 offers 30 dBi of gain and features the following advantages:

  • Lightweight yet robust components lessen the load.
  • The extended depth of the dish reflector rejects noise interference in co-location deployments.
  • The design of the mounting bracket allows for ease of installation on a pole or tower.
FREQUENCY 5.2 GHz, 5.3 GHz, 5.4 GHz, 5.x GHz
ANTENNA TYPE Dish
