Description
Get the Ubiquiti Networks AM-2G16-90 AirMAX 2.4 GHz 2×2 MIMO Sector Antenna at the best price in Uganda from Wodex.NET

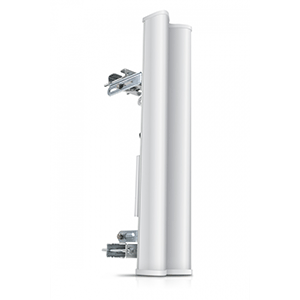

The Ubiquiti Networks AM-2G16-90 AirMAX 2.4 GHz 2×2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 2.4 GHz frequency and offers a gain of 16 dBi.
| Frequency Range | 2.3 to 2.7 GHz |
| Gain | 16.0 to 17.0 dBi |
| Hpol Beamwidth | 91° (6 dB) |
| Vpol Beamwidth | 90° (6 dB) |
| Beamwidth | Electrical: 9° |
| Electrical Downtilt | 4° |
| VSWR (Voltage Standing Wave Ratio) | 1.5:1 |
| Wind Survivability | 125 mph |
| Wind Loading | 19 lbf @ 100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 27.55 x 5.70 x 3.11″ (700 x 145 x 79 mm) |
| Weight | 8.6 lb (3.9 kg) |
| PACKAGING INFO | |
|---|---|
| Package Weight | 10.8 lb |
| Box Dimensions (LxWxH) | 35.4 x 7.8 x 6.6″ |
