AM-5AC21-60 – Ubiquiti airMAX 5GHz 21dBi 60deg 802.11AC Sector Antenna (2×2 MiMO)

In stock

Compare

Get the AM-5AC21-60 – Ubiquiti airMAX 5GHz 21dBi 60deg 802.11AC Sector Antenna (2×2 MiMO) at the best price in Uganda from Wodex.NET

AM-5AC21-60 – Ubiquiti airMAX 5GHz 21dBi 60deg 802.11AC Sector Antenna (2×2 MiMO) is an airMAX sector antenna designed for use with Rocket radios. This model has a 60° beamwidth, 21dBi gain, and supports 2×2 MIMO.

Product Includes:
• (1) Antenna
• (1) Protective Shroud
• (2) U-Brackets
• (2) Pole Brackets
• (2) Pole Clamps
• (4) M8x135 Carriage Bolts
• (4) M8x20 Serrated Flange Bolts
• (8) M8 Serrated Flange Nuts
• (2) Weatherproof RF Cables
• (1) Quick Start Guide

Product Specifications
• Dimensions: 750 x 173 x 78mm (29.53 x 6.81 x 3.07″)
• Weight: 4.8kg (10.58lbs)
• Frequency Range: 5.10 – 5.85GHz
• Gain: 21dBi
• HPOL Beamwidth: 60° (6dBi)
• VPOL Beamwidth: 60° (6dBi)
• Electrical Beamwidth: 5°
• Electrical Downtilt: 2°
• Max. VSWR: 1.5:1
• Wind Survivability: 200km/h (125mph)
• Wind Loading: 391N @ 200km/h (88lbf @ 125mph)
• Polarization: Dual-Linear
• Cross-Polarization Isolation: 25dB Min.
• ETSI Specification: EN 302 326 DN2

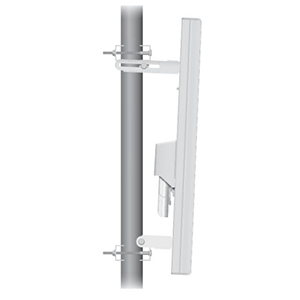

• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
