DELL POWEREDGE T330 XEON

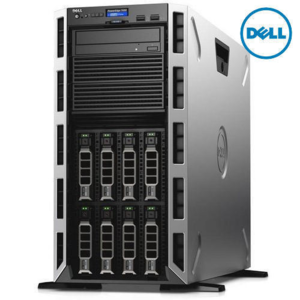

Dell PowerEdge T330 Xeon E3-1220 v5 8GB 500GB SATA Tower Server
| Model: | pe_t330_1267 |
| Detail: | Customizable: Intel® Xeon® E3-1220 v5, Optional Operating System, 8GB Memory, 500GB Hard Drive, SATA and a 1 Year Warranty |
Dell PowerEdge T330 Xeon E3-1220 v5 8GB 500GB SATA Tower Server Overview
Dell PowerEdge T330 Server drives SMB and remote office/branch office applications faster and grow your data with a powerful and expandable 1-socket tower server. This model is the Dell PowerEdge T330 server with Intel® Xeon® E3-1220 v5 processor, Optional Operating System, 8GB Memory, 500GB Hard Drive, SATA and a 1 Year Warranty.
Get the DELL POWEREDGE T330 XEON at the best price in Uganda from Wodex.NET
Quick Specs
Table 1 shows the quick spec.
| Product Model | Dell PowerEdge T330 Xeon E3-1220 V5 8GB 500GB SATA Tower Server |
| Product Series | Dell PowerEdge T330 Server |
| Customizable | Intel® Xeon® E3-1220 v5, Optional Operating System, 8GB Memory, 500GB Hard Drive, SATA and a 1 Year Warranty |
| Processor | Intel® Xeon® E3-1220 v5 3.0GHz, 8M cache, 4C/4T, turbo (80W) |
| Operating System | No Operating System |
| Memory | 8GB (1x8GB) 2400MT/s DDR4 ECC UDIMM |
| Hard Drive | 500GB 7.2K RPM SATA 3Gbps 3.5in Hot-plug Hard Drive |
| RAID Controllers | PERC S130, PERC H330, PERC H730, PERC H830 |
| Dimensions | Height: chassis base height – 430.3 mm/17.04 in With foot – 443.3 mm/17.45 in With wheel – 471.3 mm/18.55 inWidth: chassis base width – 218 mm/8.58 in With foot – 304.5 mm/11.98 inDepth: front to rear wall (w/o bezel) – 542.2 mm/21.33 in front to PSU handle (w/o bezel) – 578.42 mm/22.77 in front to rear wall (with bezel) – 558.6 mm/21.99 in front to PSU handle (with bezel) – 594.82 mm/23.41 in |
Product Details
Figure 1 shows the front and back panel description of Dell PowerEdge T330 Server.
Front Panel (Tower mode):
| ① | Power-on indicator, power button | ⑥ | USB management port/iDRAC Direct port |
| ② | NMI button and System identification button | ⑦ | USB connector |
| ③ | LCD menu buttons | ⑧ | Optical drive or tape drives |
| ④ | LCD panel | ⑨ | Hard drives |
| ⑤ | Information tag |
Note：There is also a rack mode of this server, which provides a Video connector on the front panel.
Back Panel:
| ① | Power supply units (PSU1 and PSU2) | ⑦ | USB connectors (2) |
| ② | PCIe expansion card slots (4) | ⑧ | Ethernet connectors |
| ③ | iDRAC port (optional) | ⑨ | Ethernet connectors |
| ④ | vFlash media card slot (optional) | ⑩ | System identification button |
| ⑤ | Serial connector | ⑪ | Video connector |
| ⑥ | USB connectors (4) |
Compare to Similar Item
Table 2 shows the comparison.
|
Product Model |
Dell PowerEdge T330 Xeon E3-1220 V5 8GB 500GB SATA Tower Server |
Dell PowerEdge T330 Xeon E3-1230 v5 8GB 500GB SATA Tower Server |
|
Product Series |
Dell PowerEdge T330 Server |
Dell PowerEdge T330 Server |
|
Processor |
Intel® Xeon® E3-1220 v5 3.0GHz, 8M cache, 4C/4T, turbo (80W) |
Intel® Xeon® E3-1230 v5 3.4GHz, 8M cache, 4C/8T, turbo (80W) |
|
Operating System |
No Operating System |
No Operating System |
|
Memory |
8GB (1x8GB) 2400MT/s DDR4 ECC UDIMM |
8GB (1x8GB) 2400MT/s DDR4 ECC UDIMM |
|
Hard Drive |
500GB 7.2K RPM SATA 3Gbps 3.5in Hot-plug Hard Drive |
500GB 7.2K RPM SATA 3Gbps 3.5in Hot-plug Hard Drive |
Dell Server Configuration
Table 3 shows the Dell T330 Server Configuration. You can contact us to order a T330 server according to this guide.
|
Model |
PowerEdge T330 |
|
Description |
Drive SMB and remote office/branch office applications faster and grow your data with a powerful and expandable 1-socket tower server. |
|
Processor |
1 processor from the following product families: Intel® Xeon® processor E3-1200 v6 product family Intel Pentium® Intel Core i3® Intel Celeron® |
|
Memory |
Architecture: Up to 2400MT/s DDR4 DIMMs Memory Type: UDIMMs Memory Module Sockets: 4 Maximum RAM: Up to 64GB |
|
PCI Slots |
4 slots: 1×8 PCIe 3.0 (x16 connector) 1×4 PCIe 3.0 (x8 connector) 1×4 PCIe 3.0 (x8 connector) 1×1 PCIe 3.0 (x1 connector) |
|
Network Controller |
2 X 1GbE |
|
Storage |
2.5” SATA 7.2K 2.5” SATA SSD’s 2.5” nearline SAS 7.2K 2.5” SAS 10K HDDs 2.5” SAS 15K HDDs 3.5” Enterprise SATA 7.2K HDDs 3.5” nearline SAS 7.2K HDDs |
