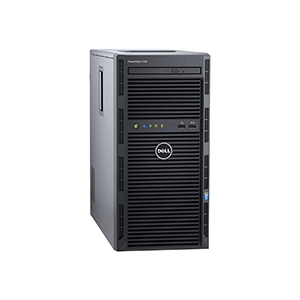

Dell Tower Server DET1303

POWEREDGE T130
Powerful and reliable 1-socket tower server for collaboration and productivity applications in
small office/home office (SOHO) and small and medium businesses (SMB).
The Dell PowerEdge T130 is an outstanding first server or
replacement server for driving collaboration and productivity
applications in SOHO and SMB. It provides 100% more memory
capacity, drives 2x I/O data throughput and delivers 100% faster
IOPS performance compared to the previous-generation PowerEdge
T110 II server.
Discover greater versatility
Harness data growth with up to four internal 3.5-inch cabled hard
drives. Grow memory capacity through time with four DIMM slots
supporting up to 64GB of DDR4 memory. Easily and flexibly attach
external devices with eight external USB ports.
Deliver powerful performance
Accelerate compute performance across a wide range of applications
with the latest Intel® Xeon® processor E3-1200 v6 product family.
Drive 50% faster clock speed with enhanced DDR4 memory
compared to DDR3, which is 12.5% faster than the initial 2133 MT/s
implementation of DDR4. Boost I/O data throughput with 4 x PCIe
3.0 slots driving 2x data throughput compared to PCIe 2.0. Deliver
2x IOPS performance with T130/PERC9 compared to the previousgeneration T110 II/PERC8.
Maximize operational efficiency
Deploy smoothly and rapidly with Dell OpenManage systems
management solutions. Easily monitor system health and behavior
with simple, intuitive Dell OpenManage Essentials console. Save IT
administrator time by automating firmware updates.
Innovative management with intelligent automation
The Dell OpenManage systems management portfolio includes
innovative solutions that simplify and automate management
tasks, making IT operations more efficient and more cost-effective
throughout the server life cycle. Leveraging the incomparable agentfree capabilities of the PowerEdge embedded integrated Dell Remote
Access Controller (iDRAC) with Lifecycle Controller technology,
server deployment, configuration and updates are rapid, confident
and worry-free. Monitoring and control of the T130 is provided by
OpenManage Essentials and can also enable anytime, anywhere
mobile access through OpenManage Mobile.
PowerEdge T130
• 1-socket tower server with a choice of latest Intel Xeon
E3-1200 v6 processors
• Up to 4 x DDR4 DIMMs
• Up to 4 x 3.5″ hard drives
Feature Technical specification
Form factor Mini tower server
Dimensions H: 36.0 cm (14.17 in)
W: 17.5 cm (6.89 in)
D: 43.5 cm (17.12 in)
Processor 1 processor from the following product families:
• Intel® Xeon® processor E3-1200 v6 product family
• Intel Pentium®
• Intel CoreTM i3
• Intel Celeron®
Chipset Intel C236
Operating system Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, x64
Microsoft Windows Server 2016
Red Hat® Enterprise Linux®
VMware® vSphere® ESXi®
SUSE Linux Enterprise Server
Memory Architecture: Up to 2400MT/s DDR4 DIMMs
Memory type: UDIMMs
Memory module sockets: 4
Maximum RAM: Up to 64GB
Hypervisor support Microsoft Windows Server with Hyper-V®
VMware vSphere ESXi®
Storage 3.5″ Enterprise SATA 7.2k HDDs
3.5″ nearline SAS 7.2k HDDs
3.5″ 7.2k SATA entry drives
Drive bays 4 x 3.5″ cabled HDDs
Slots 1×8 PCIe 3.0 (x16 connector)
1×4 PCIe 3.0 (x8 connector)
1×4 PCIe 3.0 (x8 connector)
1×1 PCIe 3.0 (x1 connector)
RAID controllers PERC S130, PERC H330, PERC H730, PERC H830
Network controller Broadcom® BCM5720
Communications 2 X 1GbE LOM
Click here for T130 supported network interface cards (NICs) and host bus adapters (HBAs) and scroll to “Additional
Network Cards” section.
Power 290W cabled PSU
Management Systems management:
• IPMI 2.0 compliant
• Dell OpenManage Essentials
• Dell OpenManage Mobile
• Dell OpenManage Power Center
Remote management:
• iDRAC8 with Lifecycle Controller, iDRAC8 Express
(default), iDRAC8 Enterprise (upgrade), 8GB vFlash
media (upgrade), 16GB vFlash media (upgrade)
Dell OpenManage connections:
• HP Operations Manager, IBM Tivoli® Netcool®
and CA Network and Systems Management, Dell
OpenManage Plug-in for Oracle® Database Manager
Dell OpenManage integrations:
• Dell OpenManage Integration Suite for Microsoft
System Center, Dell OpenManage Integration for
VMware vCenter®
Device access 8 total USB:
• Rear USB: 2 x USB 3.0 plus 4 x USB 2.0
• Front USB: 1 x USB 2.0 plus 1 x USB 3.0
