Eaton 5PX G2 UPS

In stock

Product snapshot

POWER RATING

10-400kW

VOLTAGES

480V, 415V, 400V, 380V, 220V, 208V

FREQUENCY

50/60 Hz

TOPOLOGY

Double conversion with optional Energy Saver System (ESS)

EFFICIENCY

Up to 97% in double conversion

Up to 99% in Energy Saver System

SCALABILITY

480V model: up to 8 internal power modules

208/220V model: up to 10 internal power modules

External parallel up to 8 UPSs

CONFIGURATION

Tower

BATTERIES

480V model: Internal batteries up to 50kW

415/400/380V model: Internal batteries up to 40kW

208/220V model: Internal batteries up to 60kW

External battery options for all models

Full tech specs

Power modules

POWER OFFERING (KW)

10–200 kW in 5 kW increments at 208/220V

20–160 kW in 10 kW increments at 415/400/380V

20–200 kW in 10 kW increments at 480V

200–400 kW in 50 kW increments at 480V

Note: optional internal redundancy available for all models

General characteristics

EFFICIENCY IN ENERGY SAVER SYSTEM (ESS)

Up to 99%

EFFICIENCY IN DOUBLE-CONVERSION MODE

Up to 97%

PARALLEL CAPABILITY

Up to eight distributed. Some restrictions may apply; contact factory for more information.

Input characteristics 480V models 400V models 208V models
Voltage 480/277V 4-wire
480V 3-wire
380/220V 4-wire
400/230V 4-wire
415/240V 4-wire
208/120V 4-wire
220/127V 4-wire
Voltage range: +10%/-15% +10%/-10% +15%/-15% @ 208V

+10%/-15% @ 220V

Frequency range 50/60 Hz 50/60 Hz 50/60 Hz
Power factor > .99 > .99 > .99
Input current distortion < 3% @ 100% load capacity < 3% @ 100% load capacity ≤ 3.5% @ 100% load capacity
Battery options 480V models 400V models 208V models
Battery voltage 432V, 480V 480V 480V
Charging method ABM® or float technology ABM® or float technology ABM® or float technology
Battery type VRLA, AGM, Gel, Wet, Lithium, Flywheel, Super Caps VRLA, AGM, Gel, Wet, Lithium, Flywheel, Super Caps VRLA, AGM, Gel, Wet, Lithium
Output 480V models 400V models 208V models
Voltage 480 3-phase3-wire or 4-wire

208/120V with optional IAC-D, up to 200 kW

380V, 400V or
415V 3-phase
3-wire or 4-wire
208V or 220V 3-phase 3-wire or 4-wire
Frequency range 50/60 Hz 50/60 Hz 50/60 Hz
Regulation ±1% steady state ±1% steady state ±1% steady state
Voltage THD < 1% (100% linear load)
< 5% (non-linear load)
< 1% (100% linear load)
< 5% (non-linear load)
< 1% (100% linear load)
< 5% (non-linear load)
Load power factor range Unity with the ability to support 0.8 leading to 0.8 lagging without de-rating Unity with the ability to support 0.8 leading to 0.8 lagging without de-rating Unity with the ability to support 0.8 leading to 0.8 lagging without de-rating
Certification 480V models 400V models 208V models
Safety UL 1778, cULus, UL 924 Emergency, UL 924 Auxiliary UL 1778, cULus UL 1778, cULus
EMC FCC Part 15 subpart B class A FCC Part 15 subpart B class A FCC Part 15 subpart B class A
Surge IEC 61000-4-5 IEC 61000-4-5 IEC 61000-4-5

UPS DIMENSIONS

Height: 74"

Depth: 42"

Width:

22”

  • 20–150 kW (480V)\
  • 20-120 kW (400V)
  • 10–120 kW (208/220V)

32”

  • 160–200 kW (480V)
  • 120-160 kW (400V)

34.4"

  • 10–160 kW (208/220V)

43.3"

  • 10–200 kW (208/220V)

64"

  • 250–400 kW (480V)



UL 924 CERTIFICATION

The 93PM meets the strict standards for UL 924 compliance for emergency lighting applications when ordered with an emergency lighting SKU. For more information, visit Eaton.com/UL924UPS.

OPTIONAL ACCESSORIES

• Integrated maintenance bypass
• Integrated distribution cabinet (with input and output transformer options)
• Integrated power distribution cabinet
• Integrated parallel tie cabinets
• Integrated battery cabinet (small and large)
• Wall-mounted or floor mounted bypass
• Lithium battery cabinet
• Custom options available. Contact factory for more information.



Compare
Category:

Eaton 5PX G2 UPS

Eaton 5PX G2 UPS

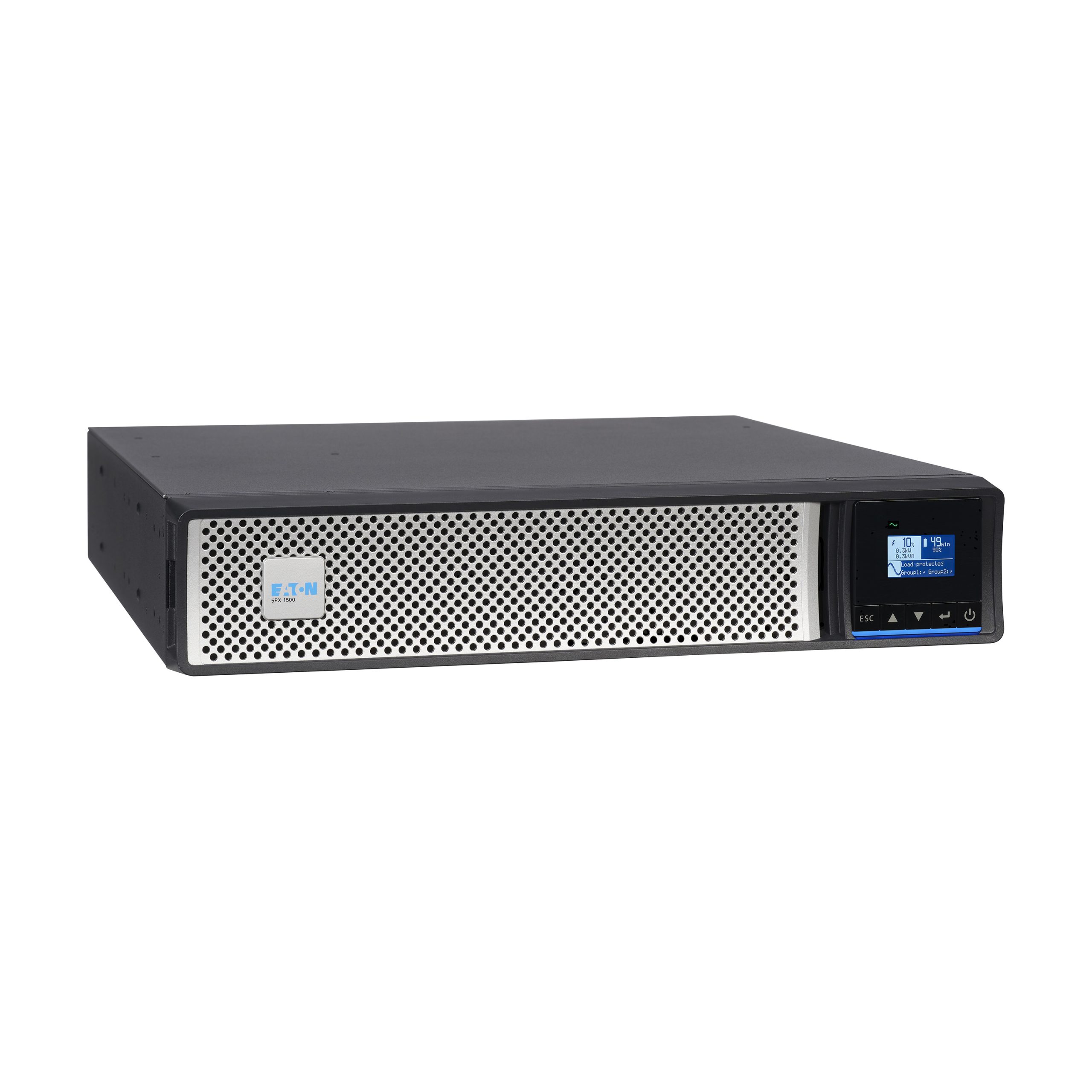

Introducing the latest addition to Eaton’s 5 series UPS line, the Eaton 5PX G2 rackmount and tower UPS provides the maximum power possible at each power rating. The 5PX G2 UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. With select 2 and 3 kVA models, the 5PX G2 UPS offers a reduced depth that conserves space for high density wallmount rack installations.

Applications include: Enterprise and distributed IT, telecom, retail, banks, IDF, small business, long runtime needs.

Connected equipment may include: Servers (including VoIP), storage, networking equipment, switches (including PoE) and other IT equipment.

POWER RATINGS
1000 – 3000 VA
VOLTAGE
120V, 208-230V
FORM FACTOR
Rack/tower

Secure, connected power protection designed for distributed IT

Remote management: notification and alerts for power events

3-year warranty

Comprehensive coverage and support for your UPS and batteries
