Huawei USG6330-AC NG Firewall
| Model: | USG6330-AC 02359512 Huawei USG6300 Next-Generation Firewall |
| Detail: | USG6330 AC Host(4GE(RJ45)+2GE Combo,4GB Memory,1 AC Power) |
Get the Huawei USG6330-AC NG Firewall at the best price in Uganda from Wodex.NET
USG6330-ACÂ Overview
The Huawei USG6330-AC next-generation firewall provides comprehensive protection in small- to medium-sized enterprise networks, ideal solution for branch locations. It provides fine-grained service access control and service acceleration through context awareness by Application, Content, Time, User, Attack, or Location (ACTUAL).
Quick Specs

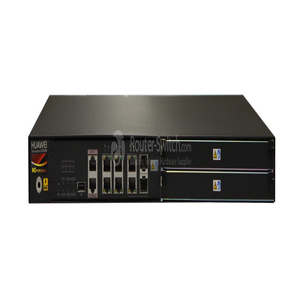

Figure 1 shows the appearance of Huawei USG6330-AC firewall.
 Table 1 shows the Quick Specs.
| Product Code | USG6330-AC |
| Mandatory service ports | 2 x GE Combo ports,
4 x 10/100/1000M autosensing Ethernet electrical ports |
| IPv4 Firewall Throughput
(1518/512/64-byte, UDP) |
1/1/0.4 Gbit/s |
| IPv6 Firewall Throughput
(1518/512/84-byte, UDP) |
1/1/0.5 Gbit/s |
| Firewall Throughput
(Packets Per Second) |
0.6 Mpps |
| AC Power Supply | 100V to 240V |
| Height | 1 U |
| Dimensions (W x D x H) | 442 mm × 421 mm × 44.4 mm |
| Weight | 8.7 Kg |
Product Details
Figure 2 shows the front panel of Huawei USG6330-AC firewall.
Note:
| ①| ESD Jack | ⑤ | 4 x GE (RJ45) + 2 x GE (Combo) |
| â‘¡ | RST Button | â‘¥ | 2 x Expansion Slots |
| ③ | One USB 2.0 Ports | ⑦ | One Out-of-band Management Port |
| ④ | One Console Port | ⑧ | Slot Numbering Layout and Indicator Area |
Figure 3 shows the back panel of Huawei USG6330-AC firewall.
This is a Schematic diagram for reference, not a real product.
Note:
| â‘ | Hard Drive Assembly (Optional) |
| â‘¡ | Power Module |
| â‘¢ | Slot for Optional Power Module |
The Modules, Cards, Licenses
Table 2 shows the recommended elements for the Huawei USG6330- AC firewall.
| Category | Model | Description |
| Business Module Group | WSIC-8GE | Huawei SVN5800 Secure Access Gateways 8GE Electric Ports Interface Card |
| WSIC-2XG8GE | Huawei 2*10GE Optical Ports+8GE Electric Ports Interface Card for USG6300 Next-Generation Firewall. | |
| Hard disk Group | SM-HDD-SAS300G-B | Â Huawei 300GB 10K RPM SAS Hard Disk for 1U rack Gateway |
| Option Power Group | Power-AC-B | Huawei Power-AC-B 170W AC power module |
| Optical Transmitter
Module Collection |
SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Huawei AR G3 Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module 850nm,0.5km,LC | |
| Function License | LIC-VSYS-10-USG6000 | Huawei Quantity of Virtual Firewall (10 Vsys) Software/License |
| LIC-SSL-100-USG6000 | Huawei Software/License: Quantity of SSL VPN Concurrent Users License (100 Users) | |
| NGFW License | LIC-IPS-12-USG6300-02 | Huawei IPS Update Service Subscribe for 12 Months (Applies to USG6330/50/60) license. |
| LIC-URL-12-USG6300-02 | Huawei URL Filtering Update Service Subscribe for 12 Months (Applies to USG6330/50/60) license. | |
| LIC-AV-12-USG6300-02 | Huawei Anti-Virus Update Service Subscribe for 12 Months (Applies to USG6330/50/60) license. | |
| Basic License | LIC-CONTENT | Huawei Content Filtering Function Software/License |
Compare to Similar Items
Table 3 shows the comparison of Huawei USG6330-AC and USG6350 -AC firewalls.
| Models | USG6330-AC | USG6350-AC |
| Mandatory service ports | 2 x GE Combo ports,
4 x 10/100/1000M autosensing Ethernet electrical ports |
2 x GE Combo ports,
4 x 10/100/1000M autosensing Ethernet electrical ports |
| Expansion slot | 2 × WSIC | 2 × WSIC |
| IPv4 Firewall Throughput
(1518/512/64-byte, UDP) |
1/1/0.4 Gbit/s | 2/2/0.4 Gbit/s |
| IPv6 Firewall Throughput
(1518/512/84-byte, UDP) |
1/1/0.5 Gbit/s | 2/2/0.5 Gbit/s |
| Firewall Throughput
(Packets Per Second) |
0.6 Mpps | 0.6 Mpps |
