Huawei USG6320-AC NG Firewall
| Model: | USG6320-AC 0235G7LN Huawei USG6300 Next-Generation Firewall |
| Detail: | USG6320 AC Host(8GE(RJ45),2GB Memory) |
Get the Huawei USG6320-AC NG Firewall at the best price in Uganda from Wodex.NET
USG6320-ACÂ Overview
Huawei USG6300 Next-Generation Firewall USG6320-AC includes 8GE (RJ-45) ports with 2GB memory. It is designed for Small- to Medium-sized Businesses (SMBs), branch offices, and chain enterprises. It provides fine-grained service access control and service acceleration through context awareness by Application, Content, Time, User, Attack, or Location (ACTUAL).
Quick Specs

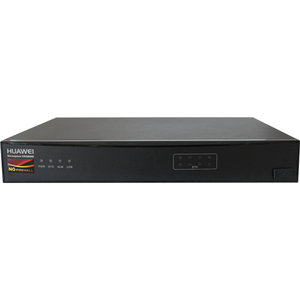

Figure 1 shows the appearance of Huawei USG6320-AC firewall.
Table 1 shows the Quick Specs.
| Product Code | USG6320-AC |
| Mandatory service ports | 8 × 10/100/1000M autosensing Ethernet electrical ports |
| Console Port | 1 (RJ45) |
| USB 2.0 Port | 1 |
| IPv4 Firewall Throughput
(1,518/512/64-byte, UDP ) |
2 Gbit/s, 2 Gbit/s, 0.4 Gbit/s |
| IPv6 Firewall Throughput
(1,518/512/84-byte , UDP) |
2 Gbit/s, 2 Gbit/s, 0.4 Gbit/s |
| Firewall Throughput
(packets per second) |
0.6 Mpps |
| AC Power Supply | 100V to 240V |
| Height | Desktop |
| Dimensions (W x D x H) | 300 mm × 220 mm × 44.5 mm |
| Package Weight | 6.27 Kg |
Product Details
Figure 2 shows the front panel of Huawei USG6320-AC firewall.
Note:
| â‘ | LED Area: PWR (Power), SYS (System), ALM (Alarm), USB LEDs. |
| â‘¡ | One USB 2.0 Port |
Figure 3 shows the back panel of Huawei USG6320-AC firewall.
Note:
| â‘ | One Console Port (RJ45 Only) |
| â‘¡ | 8 x 10/100/1000M autosensing Ethernet electrical ports |
| â‘¢ | Reset Button |
The Modules, Cards, Licenses
Table 2 shows the recommended elements for the Huawei USG6320-AC firewall.
| Category | Model | Description |
| Business Module Group | WSIC-8GE | Huawei WSIC-8GE SVN5800 Secure Access Gateways 8GE Electric Ports Interface Card |
| WSIC-2XG8GE | Huawei WSIC-2XG8GE 2*10GE Optical Ports+8GE Electric Ports Interface Card
for USG6300 Next-Generation Firewall. |
|
| Hard disk Group | SM-HDD-SAS300G-B | SM-HDD-SAS300G-B Huawei 300GB 10K RPM SAS Hard Disk for 1U rack Gateway |
| Option Power Group | Power-AC-B | Huawei Power-AC-B 170W AC power module |
| Optical Transmitter
Module Collection |
SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Huawei AR G3 Optical Transceiver S-SFP-GE-LH40-SM1310,eSFP,GE,
Single-mode Module(1310nm,40km,LC) |
|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module 850nm,0.5km,LC | |
| Function License | LIC-VSYS-10-USG6000 | Huawei LIC-VSYS-10-USG6000 Quantity of Virtual Firewall (10 Vsys) Software/License |
| LIC-SSL-100-USG6000 | Huawei LIC-SSL-100-USG6000 Software/License: Quantity of SSL VPN Concurrent
Users License (100 Users) |
|
| NGFW License | LIC-IPS-12-USG6300-01 | Huawei LIC-IPS-12-USG6300-01 Software/License: IPS Update Service Subscribe
for 12 Months(Applies to USG6310/20) |
| LIC-URL-12-USG6300-01 | Huawei LIC-URL-12-USG6300-01 Software/License: URL Filtering Update Service
Subscribe for 12 Months(Applies to USG6310/20) |
|
| LIC-AV-12-USG6300-01 | Huawei LIC-AV-12-USG6300-01 Software/License: Anti-Virus Update ServiceSubscribe
for 12 Months,With HW General Security Platform Software(Applies to USG6310/20) |
|
| Basic License | LIC-CONTENT | Huawei LIC-CONTENT Content Filtering Function Software/License |
Compare to Similar Items
Table 3 shows the comparison of Huawei USG6320-AC and USG6320-BDL-AC firewalls.
| Models | USG6320-AC | USG6320-BDL-AC |
| Bundle Function | None | IPS-AV-URL Function Group Update Service Subscribe 12 Months |
| Mandatory service ports | 8 × 10/100/1000M autosensing Ethernet electrical ports | 8 × 10/100/1000M autosensing Ethernet electrical ports |
| Firewall Throughput
(packets per second) |
0.6 Mpps | 0.6 Mpps |
