FortiGate 200E Series

In stock


The Fortinet Enterprise Firewall Solution

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass for the industrys best protection against the most advanced security threats and targeted attacks.


Get the FortiGate 200E Series at the best price in Uganda from Wodex.NET

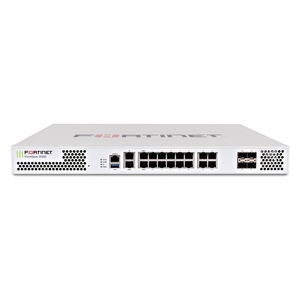

FortiGate 200E/201E

FortiGate 200E/201E


  1. Console Port
  2. USB Port
  3. 2x GE RJ45 Management/HA Ports
  4. 2x GE RJ45 WAN Ports
  5. 14x GE RJ45 Ports
  6. 4x GE SFP Slots

Powered by SPU SoC3

  • Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
  • Simplifies appliance design and enables breakthrough performance for smaller networks
  • Supports firewall acceleration across all packet sizes for maximum throughput
  • Delivers accelerated UTM content processing for superior performance and protection
  • Accelerates VPN performance for high speed, secure remote access

Content Processor

Fortinets new, breakthrough SPU CP9 content processor works outside of the direct flow of traffic and accelerates the inspection of computationally intensive security features:

  • Enhanced IPS performance with unique capability of full signature matching at ASIC
  • SSL Inspection capabilities based on the latest industry mandated cipher suites
  • Encryption and decryption offloading

Network Processor

The SPU NP6Lite network processor works inline with firewall and VPN functions delivering:

  • Wire-speed firewall performance for any size packets
  • VPN acceleration
  • Anomaly-based intrusion prevention, checksum offload and packet defragmentation
  • Traffic shaping and priority queuing




FortiGate 200E FortiGate 201E
Hardware Specifications
GE RJ45 WAN Interfaces 2 2
GE RJ45 Management/HA Ports 2 2
GE RJ45 Ports 14 14
GE SFP Slots 4 4
USB (Client / Server) 1 / 1 1 / 1
Console (RJ45) 1 1
Local Storage 480 GB
Included Transceivers 0 0
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 20 / 20 / 9 Gbps
Firewall Latency (64 byte UDP packets) 3 s
Firewall Throughput (Packets Per Second) 13.5 Mpps
Concurrent Sessions (TCP) 2 Million
New Sessions/Second (TCP) 135,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte packets) 9 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
Client-to-Gateway IPsec VPN Tunnels 5,000
SSL-VPN Throughput 900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum) 300
IPS Throughput (HTTP / Enterprise Mix) 6 Gbps / 2.2 Gbps
SSL Inspection Throughput 1 Gbps
Application Control Throughput 3.5 Gbps
NGFW Throughput 1.8 Gbps
Threat Protection Throughput 1.2 Gbps
CAPWAP Throughput 1.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode) 128 / 64
Maximum Number of FortiTokens 1,000
Maximum Number of Registered FortiClients 600
High Availability Configurations Active / Active, Active / Passive, Clustering
Height x Width x Length (inches) 1.7 x 17.0 x 11.9
Height x Width x Length (mm) 44 x 432 x 301
Weight 11.9 lbs (5.4 kg) 12.12 lbs (5.5 kg)
Form Factor Rack Mount, 1 RU
Power Required 100240V AC, 6050 Hz
Maximum Current 110 V / 3 A, 220 V / 1.5 A 110 V / 7 A, 220 V / 3.5 A
Power Consumption (Average / Maximum) 70.98 / 109.9 W
Heat Dissipation 374.9 BTU/h
Operating Temperature 32104F (040C)
Storage Temperature -31158F (-3570C)
Humidity 1090% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m)
Safety FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
