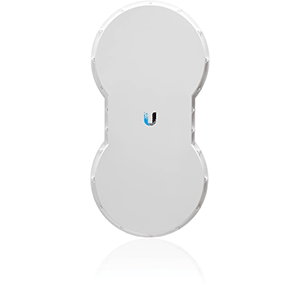

Ubiquiti AF-5 airFiber 5 GHz Carrier Class Point-to-Point Gigabit Radio

In stock

Compare

Get the Ubiquiti AF-5 airFiber 5 GHz Carrier Class Point-to-Point Gigabit Radio at the best price in Uganda from Wodex.NET

operating on the 5 GHz frequency band, the Ubiquiti AF-5 airFiber 5 GHz Carrier Class Point-to-Point Gigabit Radio from Ubiquiti Networks offers point to point connectivity at long distances of over 62 miles (100 kilometers).

GENERAL SPECIFICATIONS
LEDs 12 x Status LEDs: Data Port Link/Activity, Data Port Speed, Management Port, Link/Activity, Management Port Speed, GPS Synchronization, Master/Slave, Link Status, Modulation Mode 0.25x to 4x, 6x, 8x, Overload, Remote and Local Displays (Calibrated Signal Strength)
Maximum Power Consumption 40 W
Power Supply 50 V, 1.2 A PoE Gigabit Ethernet adapter (included)
Power Method Passive Power over Ethernet (42 to 58 VDC)
Wind Loading 863 N at 200 km/hr (194 lbf at 125 mph (200 km/hour))
Wind Survivability 125 mph (200 km/hour (125 mph)
Mounting Pole mount kit (included)
Operating Frequency FCC 15.247, 15.407, IC RSS 210: 5470 to 5600 MHz, 5650 to 5850 MHz
ETSI EN 301 893, EN 302 502: 5470 to 5875 MHz
Other Regions: 5470 to 5950 MHz
INTERFACE
Data Port 1 x 10/100/1000 Ethernet port
Configuration Port 1 x 10/100 Ethernet port
Auxiliary Port 1 x RJ-12, Alignment Tone port
SYSTEM SPECIFICATIONS
Maximum Throughput 1.0+ Gb/s
Maximum Range 62+ miles (100+ km)
Packets per Second >1 million
Encryption 128-bit AES
Forward Error Correction 164/205
Cyclic Prefix 1/16 fixed
Uplink/Downlink Ratio 50% fixed
Frame Synchronization GPS
Frequency Selection Dynamic: CE, FCC/IC
SENSITIVITY SPECIFICATIONS
Receive Sensitivity 256QAM at 8x Spatial Stream, 1024 Mb/s FDD, 512 Mb/s TDD
At 10 MHz: -70 dBm
At 20 MHz: -67 dBm
At 40 MHz: -65 dBm
At 50 MHz: -64 dBm64QAM at 6x Spatial Stream, 768 Mb/s FDD, 384 Mb/s TDD
At 10 MHz: -77 dBm
At 20 MHz: -74 dBm
At 40 MHz: -72 dBm
At 50 MHz: -71 dBm16QAM MIMO at 4x Spatial Stream, 512 Mb/s FDD, 256 Mb/s TDD
At 10 MHz: -84 dBm
At 20 MHz: -81 dBm
At 40 MHz: -79 dBm
At 50 MHz: -78 dBmQPSK MIMO at 2x Spatial Stream, 256 Mb/s FDD, 128 Mb/s TDD
At 10 MHz: -90 dBm
At 20 MHz: -87 dBm
At 40 MHz: -85 dBm
At 50 MHz: -84 dBm1/2 Rate QPSK xRT at 1x Spatial Stream, 128 Mb/s FDD, 64 Mb/s TDD
At 10 MHz: -93 dBm
At 20 MHz: -90 dBm
At 40 MHz: -88 dBm
At 50 MHz: -87 dBm1/4 QPSK xRT at 1/4x Spatial Stream, 32 Mb/s FDD, 16 Mb/s TDD
At 10 MHz: -95 dBm
At 20 MHz: -93 dBm
At 40 MHz: -92 dBm
At 50 MHz: -91 dBm
RADIO FREQUENCIES
GPS GPS clock synchronization
TRANSCEIVER SPECIFICATION
EIRP ~50 dBm (Dependent on regulatory region and frequency band)
Frequency Accuracy ±2.5 ppm without GPS synchronization
±0.2 ppm with GPS synchronization
Channel Bandwidth 10/20/40/50 MHz
Modulation 256QAM MIMO
64QAM MIMO
16QAM MIMO
QPSK MIMO
1/2 Rate QPSK xRT
1/4 Rate QPSK xRT
