• Eaton 9395 UPS family

    Power Xpert 9395 UPS

    • Cost-effective and proven UPS solution
    • Power rating: 225-1100 kVA
    • Voltage: 480V and 400V
    • Double conversion efficiency: 94%
    • Lithium-ion battery options for longer operation life

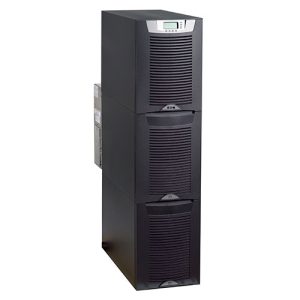

  • Eaton 9355 UPS

    GENERAL
    DIAGNOSTICS Full system self-test at startup
    UPS BYPASS Automatic on overload or UPS failure
    PARALLEL FOR REDUNDANCY Yes, using Powerware Hot Sync technology and capacity
    DIMENSIONS AND WEIGHTS See product brochure
    OVERLOAD (NORMAL OPERATION) 150% for 5 sec / 125% for 1 min (online), 110% for 10 min
    ELECTRICAL INPUT
    NOMINAL INPUT VOLTAGE 9355 (10 – 15 kVA):

    208V/120V or 220V/127V three-phase 400V models also available

    9355 (20 – 30 kVA):

    208V/120V, 220V/127V +10, -15% 480V/277V, 600V (480+600 with transformer) 400V models also available

    INPUT VOLTAGE RANGE -15%, +10% from nominal at 100% load without depleting battery
    OPERATING FREQUENCY 50/60 Hz (45 to 65 Hz)
    INPUT POWER FACTOR 9355 (10 – 15 kVA):

    >0.99 typical, >0.96 frequency converter

    9355 (20 – 30 kVA):

    0.99 typical

    INPUT CURRENT DISTORTION 5% THD
    ELECTRICAL OUTPUT
    NOMINAL OUTPUT VOLTAGE  9355 (10 – 15 kVA):

    208/120, 220/127 Vac

    9355 (20 – 30 kVA):

    208/120, 220/120 Vac

    OUTPUT VOLTAGE REGULATION 9355 (10 – 15 kVA):

    ±1% static; ±5% dynamic at 100% resistive load change, <1 ms response time

    9355 (20 – 30 kVA):

    ±1% static; ±4% dynamic with 100% step load recovery within 1 ms response time

    EFFICIENCY 91%, typical
    HEAT DISSIPATION (BTU/HR) 10 kVA models:
    3,798 @ 208V and 220V input
    6,294 @ 480V and 600V (with input isolation transformer)15 kVA models: 5,122 @ 208V and 220V input
    8,134 @ 480V and 600V (with input isolation transformer)
    20 kVA models:
    6,762 @ 208V and 220V input
    10,450 @ 480V and 600V (with input isolation transformer)30 kVA models:
    9,220 @ 208V and 220V input
    13,831 @ 480V and 600V (with input isolation transformer)
    BATTERY
    BATTERY TYPE 9 Ah, sealed, lead-acid, maintenance-free
    BATTERY RUNTIME See product brochure
    BATTERY MANAGEMENT ABM technology
    BATTERY REPLACEMENT Field-replaceable
    CHARGER 9355 (10 – 15 kVA):

    Default is 3.4A per battery string. Charger current is configurable from 0.5A to 25A per string with an overall maximum of 34A (limited by input current)

    9355 (20 – 30 kVA):

    Default is 8A

    START-ON-BATTERY Allows start of UPS without utility input
    COMMUNICATIONS
    LCD DISPLAY Graphical LCD with blue backlight
    LEDS (4) LEDs for notice and alarm
    AUDIBLE ALARMS Yes
    COMMUNICATION PORTS (1) RS-232, (1) relay contact, (1) REPO, (2) environmental input
    COMMUNICATION SLOTS (2) X-Slot communication bays
    POWER MANAGEMENT SOFTWARE Bundled software suite CD
    ENVIRONMENTAL
    OPERATING TEMPERATURE 50–104ºF (10–40ºC), 45ºC with 7.5% derating; Optimal battery performance: 77ºF (25ºC)
    STORAGE TEMPERATURE 32–77ºF (0–25ºC); Recommended battery storage: 59–77ºF (15–25ºC)
    RELATIVE HUMIDITY 9355 (10 – 15 kVA):

    0–95%, non-condensing

    9355 (20 – 30 kVA):

    5–95%, non-condensing

    AUDIBLE NOISE 9355 (10 – 15 kVA):

    <56 dBA at 1 meter (noiseless room) typical

    9355 (20 – 30 kVA):

    <58 dBA at 1 meter depending on load

    ALTITUDE 9355 (10 – 15 kVA):

    9,843 ft. (3000m) without derating

    9355 (20 – 30 kVA):

    <3000m

    CERTIFICATIONS
    SAFETY CERTIFICATIONS UL1778 5th Edition, CSA C22.2 No. 107.3-14, NOM-NYCE
    EMC COMPLIANCE 47 CFR Part 15/ICES-003 Class A
    QUALITY ISO 9001:2015, ISO 14001:2004
    SURGE ANSI C62.41 Category B3, IEC 61000-4-5
    MARKINGS cULus, NOM-NYCE
    POWER DISTRIBUTION MODULE WITH MECHANICAL BYPASS SWITCH See product brochure
    OPTIONS See product brochure
    BUILT-IN CONNECTIVITY OPTIONS See product brochure
