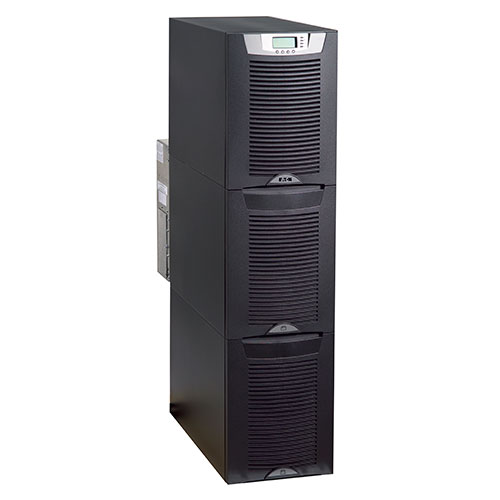

Eaton 9355 UPS
Roll over image to zoom in
Product snapshot
POWER RATING
8-15 kVA at 0.9 power factor
VOLTAGE
200-240 VAC with neutral or with optional input transformer
FREQUENCY
50/60 Hz
TOPOLOGY
Double conversion
CONFIGURATION
Compact tower
UPS model specs
| MODELS
(8-15 KVA) |
DIMENSIONS
(H x W x D, INCHES) |
WEIGHT
(LBS) |
| 9155, 2-high with (1) battery module | 32.2 x 12 x 33.7 | 352 |
| 9155, 3-high with (2) battery module | 47.8 x 12 x 33.7 | 590 |
| 9155, 3-high with (1) battery module and (1) transformer module | 47.8 x 12 x 33.7 | 558 |
Full tech specs
| GENERAL | |
| TOPOLOGY | Double-conversion |
| COLOR | Black |
| RATING (VA/WATTS) | Up to 15000/13500 |
| DIAGNOSTICS | Full system self-test at startup |
| UPS BYPASS | Automatic on overload or UPS failure |
| WARRANTY | Two-year factory warranty |
| CONTENTS (SHIPS WITH THE FOLLOWING ITEMS) | 1 ready-to-go UPS, software suite CD, user guide |
| EFFICIENCY | Up to 91% |
| ELECTRICAL INPUT | |
| CONNECTION | Hardwired - see manual for terminal block layout |
| FREQUENCY | 50/60 Hz (45 to 65 Hz) |
| FREQUENCY RANGE | 45 to 65 Hz |
| INPUT POWER FACTOR | P.F >0.99 typical, >0.96 frequency converter |
| GENERATOR COMPATABILITY | Yes |
| ELECTRICAL OUTPUT | |
| OUTPUT VOLTAGE | 100/200, 110/220, 120/240 Vac 180° phase displacement; 120/208, 127/220 Vac 120° phase displacement |
| OUTPUT RECEPTACLES | (1) PDM |
| ON UTILITY VOLTAGE REGULATION | Output voltage regulation ±1% Static; ±5% dynamic at 100% resistive load change |
| ON BATTERY VOLTAGE REGULATION | Output voltage regulation ±1% Static; ±5% dynamic at 100% resistive load change |
| OVERLOAD CAPACITY | 150% for 5 sec / 125% for 1 min (online), 110% for 10 min |
| VOLTAGE WAVE SHAPE (ON BATTERY) | Sine Wave |
| TRANSFER TIME | 0 ms |
| BATTERY | |
| BATTERY MANAGEMENT | ABM technology |
| BATTERY TYPE | 9Ah, sealed, lead-acid, maintenance-free |
| BATTERY REPLACEMENT | Field-replaceable |
| START ON BATTERY | Allows start of UPS without utility input |
| RECHARGE TIME | Internal battery: approximately 3 hours to 80% usable capacity at nominal line voltage after full load discharge External battery: no more than 10x discharge time to 90% usable capacity at nominal line voltage after full load discharge |
| COMMUNICATIONS | |
| USER INTERFACE | LCD Display with blue backlight |
| LEDS | (4) LEDs for notice and alarm |
| AUDIBLE ALARMS | Yes |
| COMMUNICATION PORTS | (1) RS-232, (1) relay contact, (1) REPO, (2) environmental input |
| COMMUNICATION SLOT | (2) X-Slot communication bays |
| POWER MANAGEMENT SOFTWARE | Bundled Software Suite CD |
| ENVIRONMENTAL & STANDARDS | |
| AUDIBLE NOISE | <53dBA at 1 meter (noise less room) typical |
| OPERATING TEMPERATURE | 10°C to +40°C, +45°C with 7.5% derating; Batteries recommended max. +25°C |
| STORAGE TEMPERATURE | -15°C to +25°C |
| RELATIVE HUMIDITY | 0-95%, non condensing |
| CERTIFICATIONS | |
| SAFETY CERTIFICATIONS | UL1778 5th Edition, CSA C22.2 No. 107.3-14, NOM-NYCE |
| EMC COMPLIANCE | 47 CFR Part 15/ICES-003 Class A |
| QUALITY | ISO 9001:2015, ISO 14001:2004 |
| SURGE | ANSI C62.41 Category B3, IEC 61000-4-5 |
| MARKINGS | cULus, NOM-NYCE |
Eaton 9355 UPS
The Eaton 9355 UPS (formerly the Powerware 9355) is a three-phase, double-conversion online UPS that provides a complete power protection solution. In a footprint that is up to 75 percent smaller than comparable UPSs, the 9355 UPS comes complete with internal batteries, an integrated power distribution module and a maintenance bypass switch. Without the need for large external battery cabinets, it is possible to parallel up to four UPSs to build out redundancy or add capacity with less space than a typical large UPS requires, thanks to Eaton’s patented HotSync paralleling technology.
POWER RATING
10-30 kVA
VOLTAGE
208/220/480/600 VAC
CONFIGURATION
Tower
Reduces total cost of ownership
• More real power in less space with 0.9 output power factor
• Industry-leading power density with small footprint and more power capacity than comparable UPSs
• Scalable with 10 kVA models that can be upgraded with an additional 10 kVA of capacity
• Sleek tower design that includes internal batteries
• Industry-leading power density with small footprint and more power capacity than comparable UPSs
• Scalable with 10 kVA models that can be upgraded with an additional 10 kVA of capacity
• Sleek tower design that includes internal batteries
Maximizes flexibility
• Power distribution module options
• Split phase architecture
• Enables paralleling of up to four 9355 UPSs for additional capacity and redundancy
• Split phase architecture
• Enables paralleling of up to four 9355 UPSs for additional capacity and redundancy
Maximizes availability and reliability
• Extended battery runtime options
• Optional bypass to service UPS without disturbing the load
• Connectivity and software options for remote monitoring and management
• Optional bypass to service UPS without disturbing the load
• Connectivity and software options for remote monitoring and management
